Hard drive PCB damage file retrieval can be daunting, especially when a power surge or liquid spill knocks your drive offline. In this real-world case study, we show how Payam Data Recovery retrieved critical data from a severely damaged hard drive circuit board. This is not theory, this is what we do in our lab every day. If you’re facing a similar issue, get a free quote today.
What happened in this hard drive PCB damage case?
Case study summary
Device: 1TB Toshiba hard drive
Problem: Completely dead after a thunderstorm. The drive would not spin up at all
Findings: A blown diode on the circuit board, the component that acts as a one way valve for current. A multimeter test confirmed it had failed
Solution: A matching donor board from our own spare parts inventory, with the ROM chip transferred across using a soldering iron and hot air station. The quicker option, simply removing the blown diode, was rejected as too risky
Outcome: The drive spun up, a complete backup was taken and the files were returned on a new USB drive. 100% recovery
Worth knowing: Swapping circuit boards alone does not work. The ROM chip holds calibration data unique to your drive and has to come across with it
Service: Hard drive data recovery
A client brought in a 3.5-inch desktop hard drive that stopped powering on after a lightning strike during a storm. The printed circuit board (PCB) showed visible scorch marks. DIY attempts had failed. No sounds. No spin. No detection by the computer. Their photos, accounting files, and legal documents were all stuck on the drive.
Severe electrical damage like this often destroys essential controller chips. Attempting a PCB swap without the proper match or firmware handling can cause permanent loss. Thankfully, they came to us before further damage occurred.
Can hard drive PCB damage be fixed?
Yes, file recovery from a damaged hard drive circuit board is possible. However, it must be done by professionals with the right tools. Each PCB is unique, requiring not just a physical match but also firmware transfer. Without this, the drive will never unlock user data.
At Payam, we’ve handled hundreds of power surge recoveries and PCB replacements. We have thousands of donor boards, and the equipment needed to transfer firmware safely. Our hard drive recovery lab is purpose-built for these jobs.
How Payam handled the PCB replacement data recovery
- Free Assessment: We performed a same-day diagnostic at our Sydney lab.
- Quote and Approval: We quoted the client based on PCB damage, not guesswork. They approved.

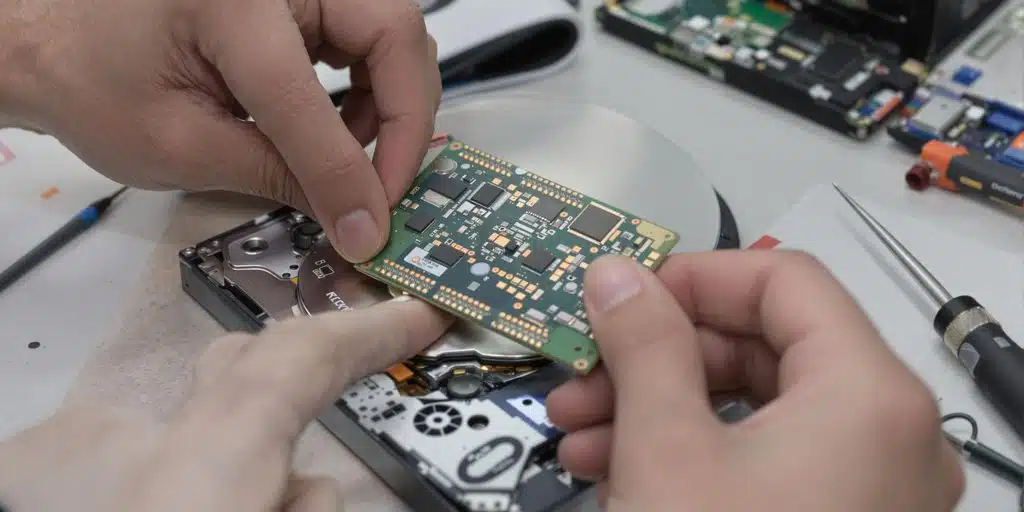

- PCB Swap: Using donor parts, we matched the board model, then transferred the ROM chip (which holds unique calibration data).
- Data Extraction: Once operational, we imaged the drive sector-by-sector using PC-3000 and extracted the user data.
- Success: 100% of the files were recovered and returned on a new USB hard drive.
Another example of Payam helping clients recover what matters most. Read more case studies here.
Why trust Payam for hard drive PCB damage file retrieval?
- Australia’s oldest data recovery company since 1998
- 300,000+ devices recovered
- Australia’s largest data recovery company with four labs and a team of expert data recovery engineers
- Trusted by government agencies and 2000+ IT companies
- Four full service labs in Sydney CBD, Rhodes NSW, Melbourne and Brisbane, plus secure drop-off offices in Adelaide and Perth
- ISO 5 certified laminar flow cabinet
- No outsourcing or offshoring, all work done in-house
- High success rate
A failed hard drive needs an experienced data recovery engineer, and often a matching donor part. We work on 10 to 15 drives with failed heads every day.
- We are a specialist data recovery lab, not a computer repair shop.
- The best equipped data recovery lab in Australia: an ISO 5 certified laminar flow cabinet for head replacements, an anti-static lab, microscopes and microsoldering stations for circuit board work, the Ace Lab PC-3000, Atola Insight Forensic and DeepSpar Disk Imager, and over 30,000 donor parts, including around 20,000 donor hard drives. When your drive needs a matching part, it is usually already on our shelf.
- Data recovery labs and IT companies in more than 50 countries have sent us their difficult cases over the past ten years.
- Rated 4.9 from more than 2,300 Google reviews.
- About 90% of our jobs are no fix, no fee. The hardest 10% carry an attempt fee.
- See your files before you pay. You tell us which files matter most. Before you pay for the recovery, we’ll send you a list of your recovered files so you can check them. If any of the files you listed are missing, tell us and we’ll search again.
- There is no card surcharge. Pay by Visa, Mastercard, American Express, Afterpay, Zip or bank deposit (EFT).
- Call or visit us, and you can speak with the data recovery engineers who do the work.
We are not the cheapest. We are the best in Australia at this work. We know what to do, how to do it, and we will do our very best for you. Your best chance of getting your data back is with us.
Costs and timeline for hard drive PCB damage file retrieval
Current prices are on our hard drive data recovery page. Priority options are available. Prices depend on the model and damage severity. After our free 1-2 day assessment, you’ll receive a detailed quote with no pressure. Jobs involving donor PCBs or rare firmware chips may take longer if donor parts must be sourced.
Common questions on hard drive PCB damage file retrieval
- How long does PCB recovery take? Most take 5-10 days, but urgent cases can be expedited.
- Can I just swap the board myself? No. You need to transfer ROM data from the old board. Without that, it won’t work.
- Is my data safe? Yes. All work is done in-house under strict confidentiality protocols.
Learn more about PCB failures
For technical insights on how PCB faults affect hard drives, see this Wikipedia guide on HDD PCBs.
Video transcript
Click to expand full transcript
When a hard drive will not spin up, the issue typically lies with the PCB, the printed circuit board that supplies electricity to the drive. The culprit? A blown diode, a tiny component that acts like a one way valve for electrical current. A multimeter test confirmed it was faulty.
There are two solutions: remove the damaged diode, quick but risky, or take the professional approach by transferring the ROM chip to an identical working board. From their spare parts inventory, a matching donor PCB was selected.

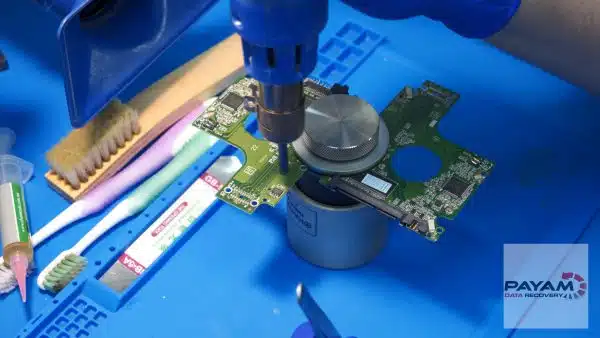

What most people do not realise, simply swapping boards does not work. The ROM chip contains unique calibration data for each drive. Using a soldering iron and hot air station, the technician carefully transferred the ROM chip to the donor board.
The result? The drive spun up perfectly. A complete backup was created and transferred to a new USB drive for the customer, who will receive the good news tomorrow. Proper technical knowledge turned what could have been a complete data loss into a 100% successful recovery. See you next time.
