Proven iPhone 15 Data Recovery Case Study: Complete Photo & Video Recovery After Sudden Failure
This iPhone 15 data recovery case study showcases the successful recovery of every photo and video from a device that suffered a sudden, unexplained failure. Manessa, based in Massachusetts, USA, first sent her iPhone to a leading American data recovery firm, DriveSavers in Novato California. She sought a second opinion with Payam Data Recovery in Australia. Our team undertook a complex logic board and CPU repair, overcoming challenges to achieve a result that exceeded expectations in this iPhone 15 data recovery effort. Learn more about our iPhone data recovery services.
Technical Details: iPhone 15 Architecture and Recovery Challenges
The iPhone 15 features Apple’s advanced A16 Bionic CPU with a 6-core setup. It has 2 high-performance “Everest” cores at 3.46 GHz and 4 efficiency cores at 2.02 GHz, made on a 4nm TSMC process. It also includes 6GB of high-speed LPDDR5 RAM at about 3200 MHz. This boosts memory bandwidth and efficiency.
All key parts, CPU, RAM, and NAND storage, are soldered onto the logic board. Apple’s parts pairing and Secure Enclave encryption add security but complicate iPhone 15 data recovery. In this case, the cracked CPU needed chip-level microsoldering and manual silicon layer removal with precision tools. Over 10 attempts, each with a less than 10% success rate, exposed undamaged circuits without damage.
After repair, the device faced iOS corruption and boot loop issues due to memory chip errors. Advanced techniques like NAND flash programming, custom firmware, and data extraction restored functionality and completed the iPhone 15 data recovery.
| Component | Specification |
|---|---|
| CPU | Apple A16 Bionic, 6-core (2×3.46 GHz + 4×2.02 GHz) |
| RAM | 6GB LPDDR5, ~3200 MHz |
| Manufacturing Process | 4nm TSMC |
| Neural Engine | 16-core Apple Neural Engine |
| Storage | Soldered NAND flash, encrypted |
| Security | Secure Enclave, parts pairing |
The Original Problem: Sudden Black Screen

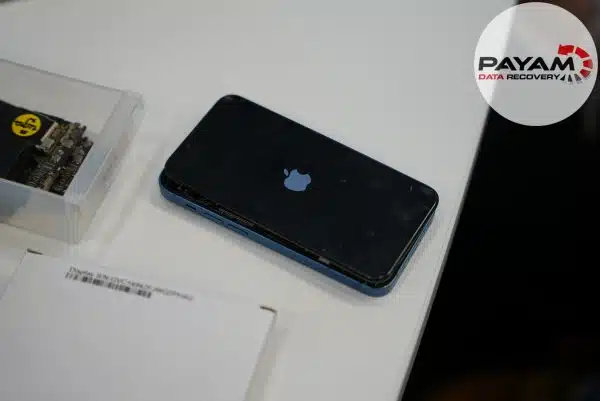

Manessa’s iPhone 15 worked fine with 20% battery. Then it suddenly switched off, and the screen went black. She tried charging with different cables and chargers, but it wouldn’t turn on. The device had no liquid exposure or visible damage. This failure led her to seek professional iPhone 15 data recovery.
The iPhone 15’s Major Problem
Despite no visible damage, a cracked CPU was the issue. Any mistake could cause permanent data loss. After a leading American firm failed, Manessa sent the phone to Payam Data Recovery in Australia for a second iPhone 15 data recovery opinion.

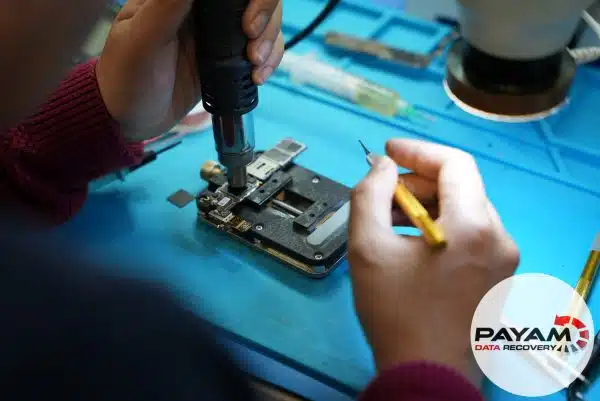

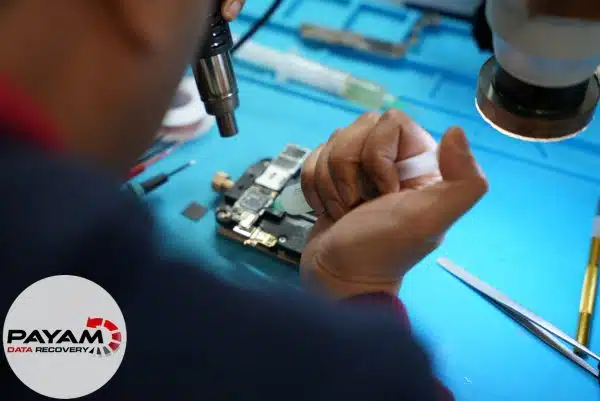

Micro-Surgery on a Tiny Chip
Recovering data was like micro-surgery. Our engineer used a manual grinder to remove damaged silicon layers carefully. The process took 10 attempts. Most would quit after one try, given the less than 10% success rate. After days of work, the phone worked again, completing the iPhone 15 data recovery.
Another Hurdle: iOS Corruption
Progress seemed promising until iOS corruption from memory chip errors emerged. This nearly stopped the iPhone 15 data recovery. However, our engineer persisted. Hours turned into weeks of careful effort. Such skill is rare in repair shops.
Understanding iOS Boot Loop Problems: Causes and Challenges
A key challenge in this iPhone 15 data recovery was the iOS boot loop problem. The device restarted repeatedly, stuck on the Apple logo.
Boot loops stem from various issues. These include failed iOS updates, corrupted files, jailbreaking, low storage, hardware damage, memory errors, and overheating. In Manessa’s case, LPDDR5 RAM damage caused read errors leading to corruption. Advanced diagnostics and repairs, like NAND programming and firmware installation, were needed to fix this and complete the iPhone 15 data recovery.
The Amazing Result
Every photo and video was recovered. This shows that skill and patience can succeed where others fail. Payam Data Recovery leads in iPhone 15 data recovery and device repair, delivering on their promise.
Disclaimer
Success here doesn’t guarantee all cases. Not all cracked CPUs are recoverable. The outcome depends on damage type and extent. Some iPhone 15 data recovery attempts may fail despite advanced techniques. We avoid false hope. Each case needs a professional review.
Apple Data Recovery and Warranty Information
Third-party iPhone 15 data recovery may affect your Apple warranty. Check Apple’s warranty page for details on coverage and third-party service impacts.
For iPhone support, visit Apple’s support page.
More Case Studies and Success Stories
Explore more examples:
- iPhone X Data Recovery Case Study
- Disabled iPhone Recovery
- iPhone 11 Logic Board Failure
- iPhone 12 Water Damage Recovery
Key Takeaways
- Never Give Up: Manessa’s persistence paid off.
- Special Skills Needed: Cracked CPUs and corruption require expertise for iPhone 15 data recovery.
- Patience Matters: The process took weeks of careful work.
- Recovery Possible: Even hopeless cases can succeed with iPhone 15 data recovery.
- Second Opinion Helps: Seek another expert if needed. Visit our services or get a free quote.
If your iPhone has catastrophic damage or stops working suddenly, don’t lose hope. Specialist iPhone 15 data recovery is possible. Watch the video, read the story, and see why Payam Data Recovery is trusted.
